REVERSE OSMOSIS SYSTEM
Home / Reverse Osmosis System

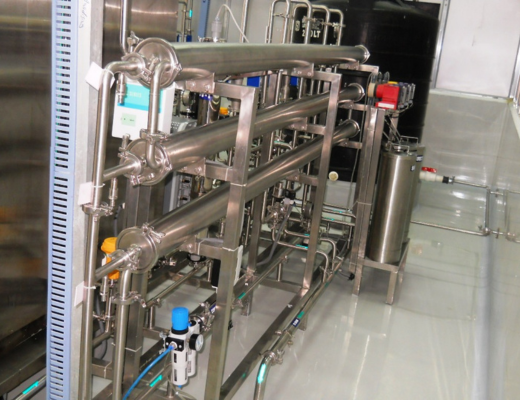

REVERSE OSMOSIS SYSTEM
S D AQUA FINE designs and supplies advanced Reverse Osmosis Systems for high-purity water generation across pharmaceutical, biotech, food & beverage, cosmetic, and chemical processing industries.
​
The systems are custom-engineered, modular, and available in fully automatic or semi-automatic configurations as per the process and compliance requirements.
Specifications:
-
Sanitary design meeting all CGMP and USP purified water criteria
-
Wetted parts: SS 316L / FDA-grade polymeric membrane housings
-
Non-contact parts: SS 304 matte finish
-
Precision orbital welding on all piping
-
Automation compliant with MCA & USFDA 21 CFR Part 11
-
Custom capacity manufacturing (250 LPH to 50,000 LPH+)
-
Hygienic design with 100% drainable piping
-
GMP documentation: DQ, FAT, IQ, OQ & PQ protocols
-
On-site installation, commissioning, and validation support
-
Documented output quality (conductivity, TOC, flow, microbial compliance)
Applications:
Reverse Osmosis Systems are designed as per CGMP and purified water standards using sanitary SS 316L contact parts with a surface finish of Ra < 0.6 μm.
Systems are equipped with:
-
Multi-stage pre-filtration (sand filter, carbon filter, micron filters)
-
High-rejection RO membranes with hygienic housings
-
Sanitary diaphragm valves and high-pressure pumps
-
Sanitizable piping with orbital welded joints
-
Hygienic sample points and sanitized loop connections
Automation:
-
S D AQUA FINE RO Systems are fully automated PLC-based units featuring:
-
Safety interlocks for pressure, flow, and conductivity
-
Automatic flushing, sanitization & CIP modes
-
Real-time data logging and SCADA connectivity
-
VFD-controlled pumps for optimal energy use
-
Online monitoring: conductivity, pressure, flow, temperature, pH
Documentation:
The complete documentation package includes lifecycle records from design to site acceptance testing. Our validation team supports protocol preparation, calibration, on-site testing, membrane integrity checks, and final compliance reporting.
