PURIFIED DISTRIBUTION SKID

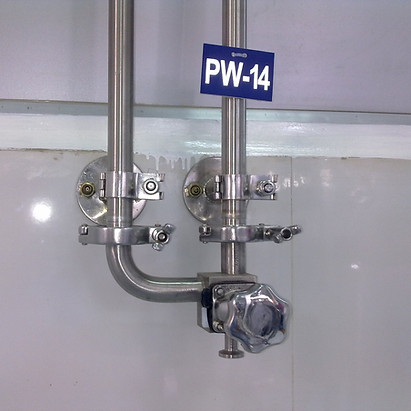

The Purified Distribution Skid is designed for continuous circulation and hygienic distribution of Purified Water (PW) used in pharmaceutical, cosmetic, biotech, laboratory and healthcare applications. The system ensures stable water quality by maintaining loop velocity, temperature control, and eliminating stagnation through sanitary design.
Specifications:
-
Material of Construction: SS 316L (Product Contact), SS 304 (Non-Contact)
-
Surface Finish: Internal Electropolished / Hygienic Finish
-
Storage Tank: Sanitary Design with 0.2 µm Vent Filter
-
Piping: SS 316L Orbitally Welded / Tri-Clamp Hygienic Tubing
-
Drainability: 100% Self-Draining, Proper Loop Slope
-
Recirculation Pump: Sanitary Pump (Duty + Standby Optional)
Applications:
-
Pharmaceutical Production (Rinsing, Cleaning, Formulation)
-
Biotechnology & Lab Applications
-
Cosmetic & Personal Care Manufacturing
-
Medical Device Cleaning & Final Rinsing
-
Any process requiring high-purity, low-conductivity water
Automation:
-
PLC / HMI Controlled Operation
-
SCADA Integration (Optional)
-
Continuous Monitoring of Conductivity, Flow, Pressure & Temperature
-
Automatic Duty–Standby Pump Changeover
-
Sanitization Cycle Automation
-
Alarm & Event Logging
Documentation:
The Purified Distribution Skid is supplied with a complete documentation package including detailed P&ID, GA drawings, isometric layouts, and material traceability records. Comprehensive validation documents such as FAT, SAT, IQ, OQ, and PQ are provided to ensure regulatory compliance.
